Introduction
When you finish a tank model, the barrel is often what draws the most attention. A clean, perfectly painted gun looks fine, but if you want that extra touch of realism, adding the look of smoke and heat staining makes a big difference. Real barrels darken from gunpowder residue, exhaust gases, and heat, especially near the muzzle or brake.
In this guide, we’ll go through how to recreate that look in a simple and realistic way — no tricks, just solid technique that works with both brushes and airbrushes.
What You’ll Need
Paints
- Flat black
- Dark brown (burnt umber or chocolate brown)
- Dark and medium grey
- Buff or light sand
- Optional: a hint of blue-grey or violet-brown for heat tinting
Tools
- Fine round brushes (sizes 00–1) and one soft flat brush
- Cotton swabs or makeup sponges
- Airbrush (optional)
- Masking tape or paper
- Matt varnish
- Graphite pencil (2B–6B) or powdered graphite
- Optional: pigments — black, dark brown, dark grey
- Thinner for your paint type

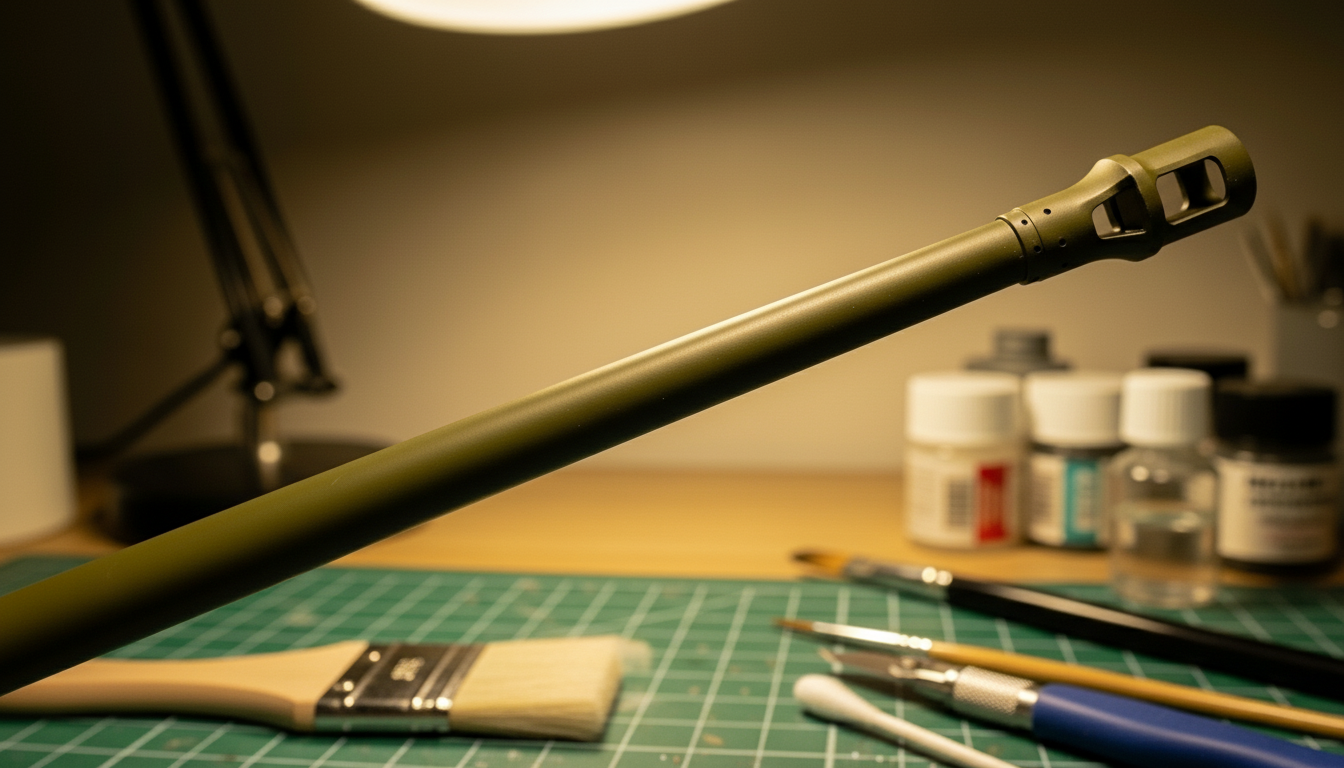

Step 1 – Prepare the Barrel
Before adding any smoke effect, seal the base paint with a thin coat of matt or satin varnish and let it dry. This protects the paint and makes blending easier.
Wipe the barrel with a soft cloth to remove any dust before starting.

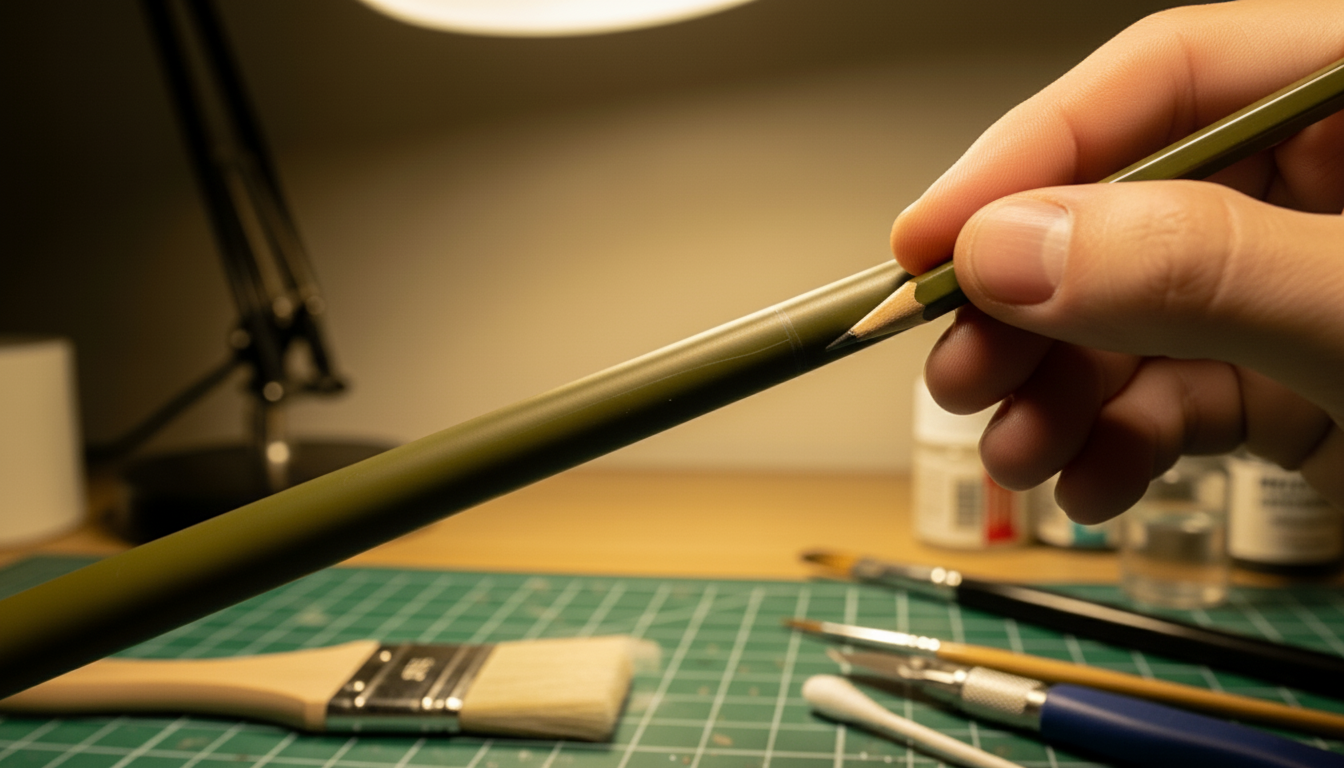

Step 2 – Mark the Soot Area
On real tanks, soot builds up mostly at the last few centimeters of the barrel. On a 1/35 scale model that’s roughly 10–40 mm from the tip.
If your tank has a muzzle brake, smoke also flows backward through the brake ports and stains behind them. Lightly mark this area with a soft pencil — it helps keep the effect even.

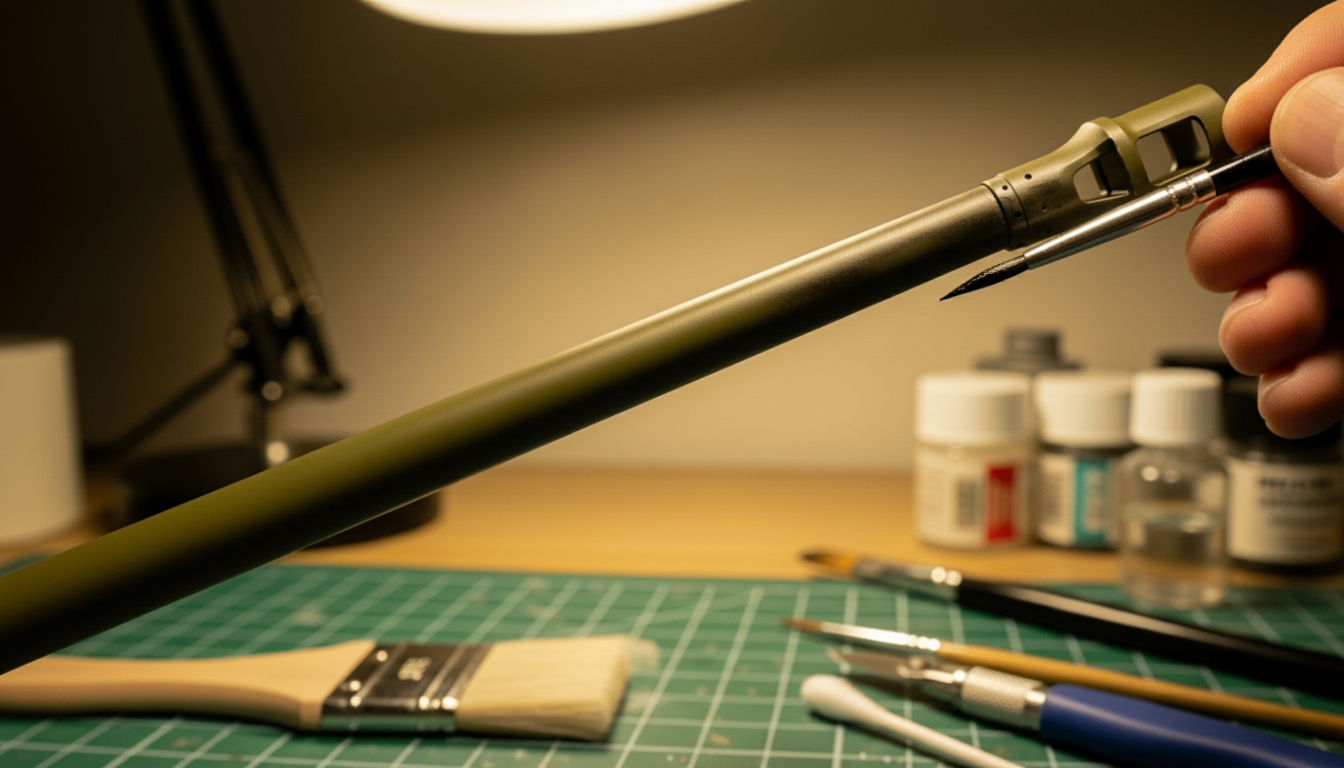

Step 3 – Lay the First Smoke Layer
You’re now starting to build the actual smoke effect — not as a thick painted ring, but as a soft fade that fades backward from the muzzle.
- Airbrush users: spray a misty ring of thinned black (70% thinner / 30% paint).
- Brush users: paint a soft black ring and immediately feather it backward using a damp flat brush or cotton swab.
- The transition must be uneven but subtle — darker at the muzzle tip, fading naturally along the barrel.
This is the first visible layer of soot.

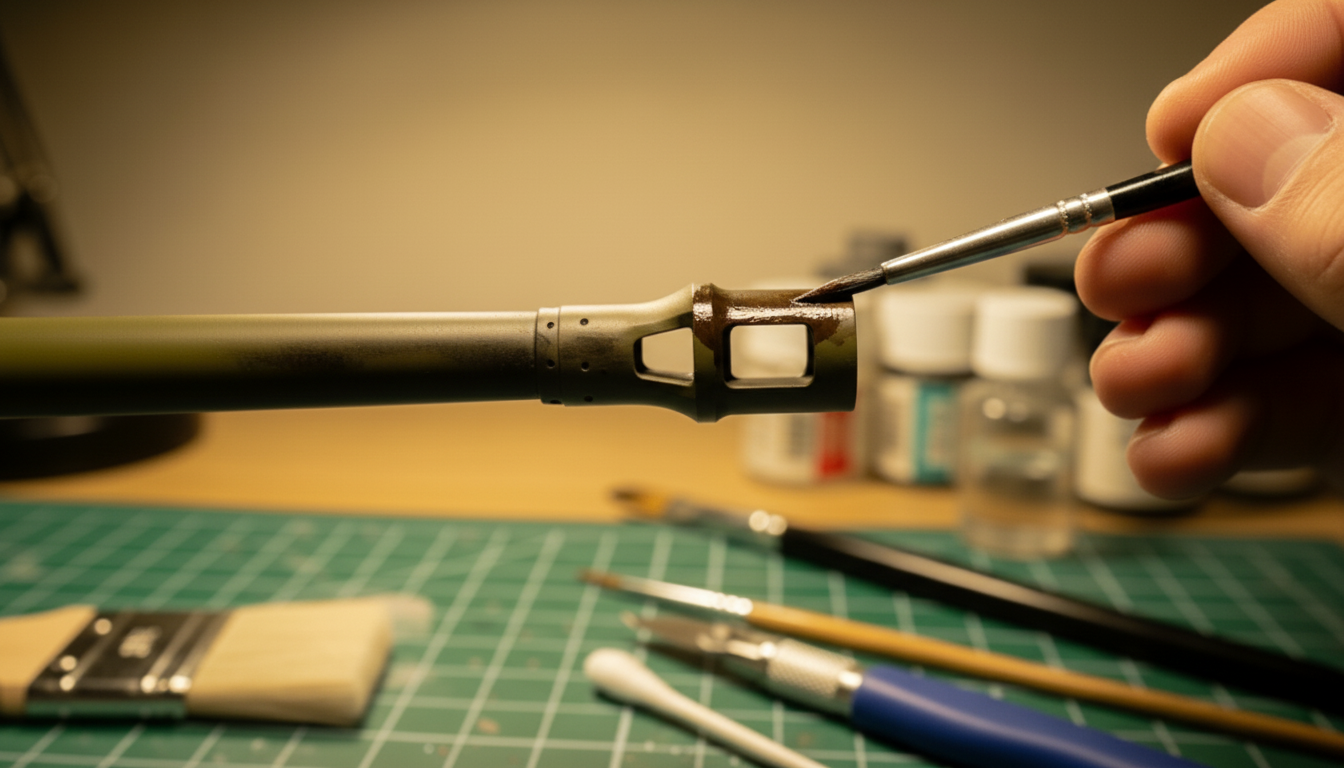

Step 4 – Add Depth with Brown-Black
Pure black looks flat. Mix roughly 60% black and 40% dark brown, thinned as before. Apply this mix just inside the first smoke layer, concentrating the darkest tone near the muzzle tip. Feather it gently backward with a damp brush to create a smooth transition.
The color should feel warmer — more like burnt residue than black soot. Let it dry completely before moving to the next layer.

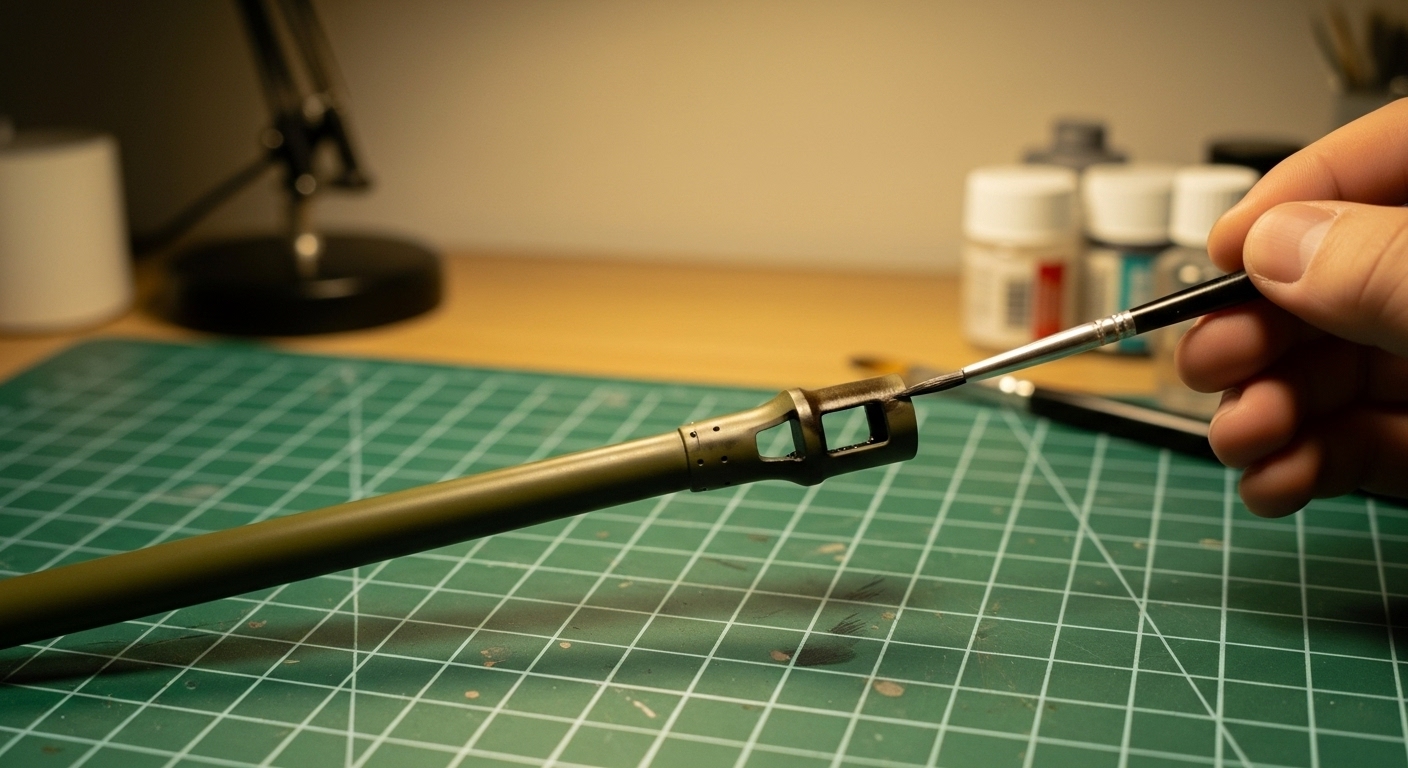

Step 5 – Feather and Blend
Take a dark grey thinned almost like a wash. Brush or spray it lightly where the soot fades, pulling it backward to create a soft transition between the dark tip and the clean barrel.
If you want a slightly older, dusty look, glaze a very thin buff color over the area. You can also tap a bit of dark pigment at the muzzle for that dry, ashy texture. Fix the pigment with a mist of thinner or pigment fixer.
Step 6 – Add Heat Tint (Optional)
Some guns show a faint bluish-brown band just behind the soot zone.
Mix a very thin glaze of blue-grey and a touch of violet-brown. Paint a narrow band a few millimeters behind the soot area. It should be barely visible — just a slight shift in tone.

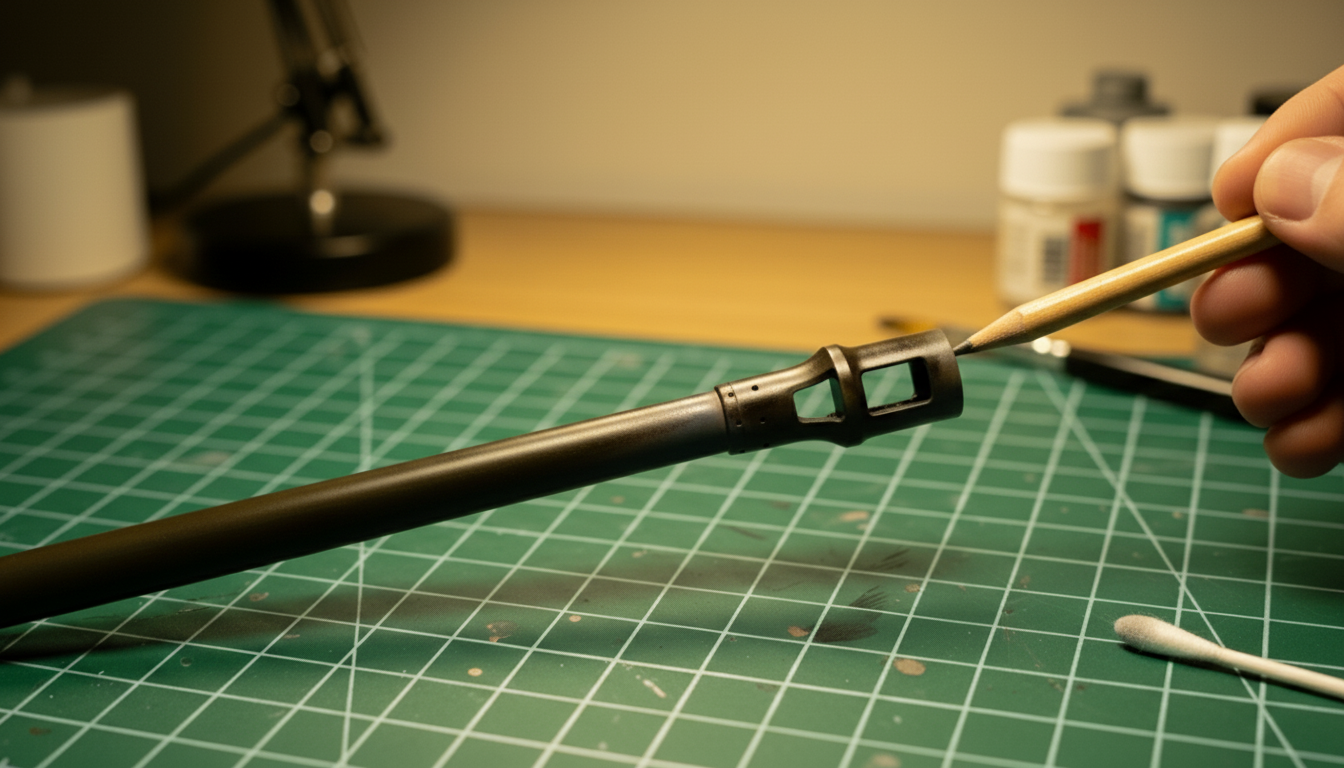

For a metal touch, rub a graphite pencil around the edge of the muzzle and buff gently with a cotton swab.
If your tank has a muzzle brake, gases leave soft streaks that flow backward and slightly downward from the brake ports.
Thin your brown-black mix again (around 70% thinner : 30% paint) and pull gentle streaks starting from each port toward the turret.
Use a damp brush immediately after to feather the streaks, blending them into the surrounding soot. A faint smoky fade behind the brake and on the barrel shoulder adds a convincing touch of realism — keep it subtle.
If your model has a muzzle brake, you may optionally add faint backward soot streaks. This keeps the original variation in your text and doesn’t confuse readers.

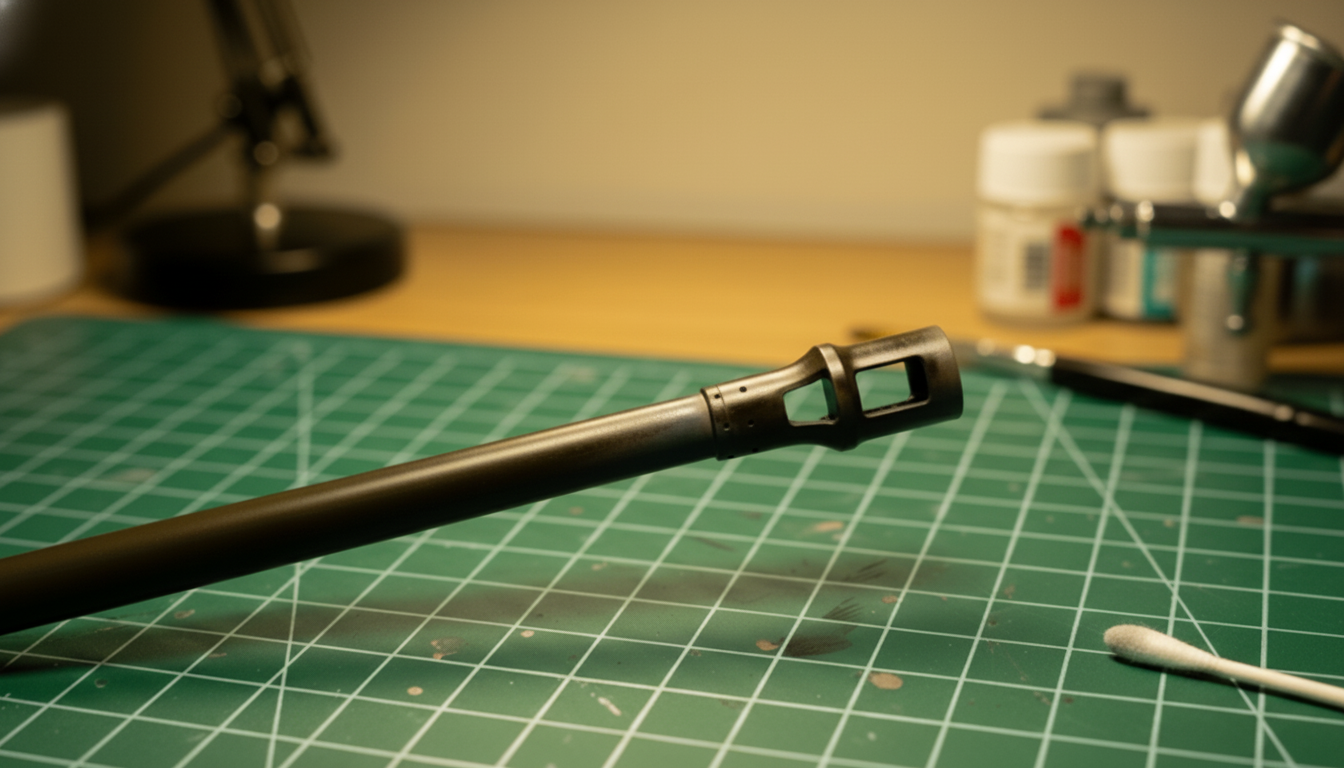

Step 7 – Finishing Touches and Sealing
When you’re happy with the smoke and heat effects, it’s time to protect and unify the finish.
Spray a thin coat of matt varnish over the barrel to seal the pigments and soften the overall contrast. The varnish tones down the soot just enough to make it look natural, as if blended into the metal rather than sitting on top.
Once dry, check the surface under a good light — the effect should be smooth, subtle, and consistent. If you prefer a “fresh firing” look, dust a little dark pigment right on the muzzle edge while the varnish is still tacky.
A light rub with a graphite pencil around the rim adds a final metallic sparkle — just enough to catch the eye.
Extra Tips
- Let each layer dry before the next.
- Always pull paint along the barrel, never across it.
- Use reference photos — soot patterns differ from tank to tank.
- Practice on a spare part first if you’re new to weathering.
Closing Paragraph
That’s it — a simple, realistic method that gives any tank model that “used” look without overdoing it. Once you’ve tried it a few times, you’ll find it takes only 10–15 minutes and instantly adds life to your builds.
If you test it out, share your results with the community — we’d love to see how yours turned out.
Frequently Asked Questions
Q: Can I use this same method on aircraft guns or exhausts?
Yes. The same technique works on aircraft cannons and exhausts — just adjust the intensity. Aircraft usually show lighter smoke and more directional streaks, while tank barrels are darker at the muzzle.
Q: What if I don’t have an airbrush?
No problem. All steps can be done with regular brushes. Just make sure your paint is well thinned, work in light layers, and always blend backward with a clean damp brush to soften the edge.
Q: Which varnish should I use to seal the effect?
A matt varnish gives the most realistic finish, but if your model has metallic parts near the barrel, a satin varnish can add a subtle metal sheen. Avoid glossy finishes — they’ll kill the smoke realism.
Q: How do I avoid overdoing the smoke effect?
Less is more. Real tanks show only light discoloration, not solid black rings. Build the color gradually and stop when it starts to look “used” rather than “burned.”
Q: Can I combine this with pigment powders or weathering pastels?
Absolutely. Pigments add extra texture and realism. Apply them sparingly at the end and fix with thinner or pigment fixer. Just remember they will darken slightly once sealed.
Q: How durable is the effect after sealing?
Once the matt varnish is applied, the smoke and tint layers are fully protected. You can safely handle or dust the model without worrying about rubbing off the paint or graphite sheen.
